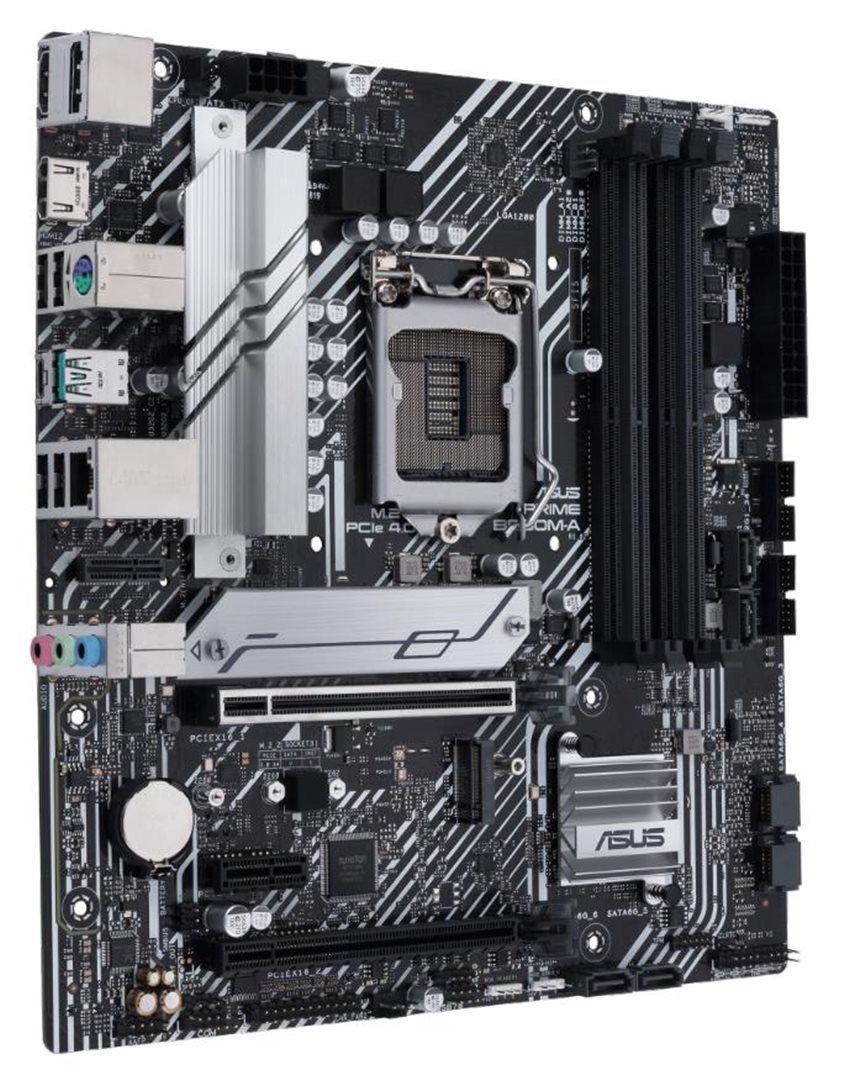

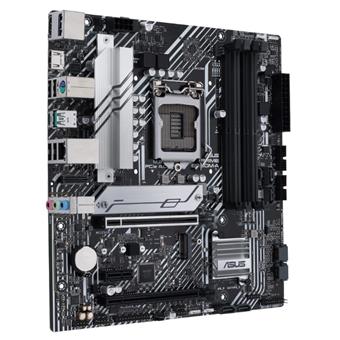

ASUS PRIME B560M-A/ LGA 1200/ mATX

Chipset: Intel® B560 Chipset

Rozměrový formát: microATX Form Factor (244 mm x 234 mm)
Podpora pro procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Patice procesoru: LGA 1200

Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti:

• 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4

• Dual Channel Memory Architecture
• Intel® Extreme Memory Profile (XMP)
• OptiMem II

Grafická karta:

• Integrated Graphics Processor (na základě procesoru)

Zvuková karta:

• ALC887/897

Síťová karta:

• 1x Intel® I219-V 1Gb Ethernet

Rozšiřující sloty:

• 1x PCIe 4.0/3.0 x16 slot(s)
• 1x PCIe 3.0 x16 slot (supports x4 mode)
• 1x PCIe 3.0 x1 slots

SATA:

• 6x SATA 6Gb/s ports

M.2:

• M.2_1 slot (Key M), type 2242/2260/2280
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

USB:

• zadní USB porty ( celkem 6 )
• 2x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C®)
• 4x USB 2.0 port(s) (4 x Type-A)
• přední USB porty ( celkem 5 )
• 4x USB 3.2 Gen 1 ports
• 2x USB 2.0 ports
• 1x USB 2.0 port

Interní porty:

• 1x 4-pin CPU Fan header(s)
• 1x 4-pin CPU OPT Fan header(s)
• 2x 4-pin Chassis Fan header(s)
• 1x 24-pin Main Power connector
• 1x 8-pin +12V Power connector
• 2x M.2 slots (Key M)
• 6x SATA 6Gb/s ports
• 2x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports
• 1x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
• 1x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports
• 2x AURA Addressable Gen 2 header(s)
• 2x AURA RGB header(s)
• 1x Clear CMOS header
• 1x COM Port header
• 1x Front Panel Audio header (AAFP)
• 1x LPT header
• 1x S/PDIF Out header
• 1x SPI TPM header (14-1pin)
• 1x 20-3 pin System Panel header with Chassis intrude function

Externí porty:

• 2x USB 3.2 Gen 2 port(s) (1 x Type-A, 1 x USB Type-C®)
• 4x USB 2.0 port(s) (4 x Type-A)
• 1x DisplayPort
• 2x HDMI™ port
• 1x Intel® I219-V 1Gb Ethernet port
• 1x V-M.2 slot (Key E)
• 3x Audio jacks
• 1x PS/2 Keyboard/Mouse combo port

Obsah balení:

• 2x SATA 6Gb/s cables
• 1x M.2 Rubber Package(s)
• 1x M.2 SSD screw package(s)
• 1x Vertical M.2 Key E bracket set
• 1x Support DVD
• 1x User manual

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
